qRadar Installation and Configuration ​

After infrastructure deployment, you need to install and configure qRadar manually.

Installation Process ​

Step 1: Transfer qRadar ISO ​

bash
# Transfer qRadar ISO (~8 minutes for 5GB file)
scp -i ~/.ssh/purple-team-key files/750-QRADAR-QRFULL-2021.06.12.20250509154206.iso ec2-user@SIEM_IP:/tmp/

# SSH to SIEM instance
ssh -i ~/.ssh/purple-team-key ec2-user@SIEM_IP

Step 2: Prepare System ​

bash
# Step 1: Prepare system (handles reboots if needed) - takes ~15 mins to complete after the instance is ready
./prepare_for_qradar.sh

# If system reboots, wait ~2 minutes then SSH back and run prepare script again
# Continue until you see "System ready for qRadar installation!"

Step 3: Install qRadar ​

bash
# Step 2: Install qRadar (only after system is ready)
./install_qradar.sh

Installation Details ​

Installation takes 1-2 hours. During installation, choose:

  • Software installation
  • "All-In-One" console
  • Default settings
  • Your timezone and city
  • Set passwords (don't forget them)

Note: Installation appears stuck on "Installing DSM rpms:" but it's working. Takes 30+ minutes.

The installation script may end with no server running on /tmp/tmux-0/default [exited]. This is normal - it just means the tmux session completed. qRadar may still be running successfully.

Verify Installation ​

To verify qRadar is working after installation:

bash
# Check if qRadar service is running
sudo systemctl status hostcontext

# If active (running), qRadar is working - access the web interface via HTTPS

Configure qRadar for Red Team Logging ​

After qRadar installation is complete, configure it to properly separate red team activities from victim logs:

bash
# SSH to qRadar instance
ssh -i ~/.ssh/purple-team-key ec2-user@SIEM_IP

# Run the configuration guide
./configure_qradar_logsources.sh

This script provides step-by-step instructions for:

  1. Creating Red Team Log Source: Separates Kali logs from victim logs
  2. Setting Up Custom Properties:
    • RedTeamActivity - Type of red team activity (commands/network/auth)
    • RedTeamCommand - Actual command executed
    • RedTeamTarget - Target of the activity
  3. Configuring Log Parsing: Extract red team metadata from logs
  4. Verifying Setup: Ensure red team logs are properly categorized

Manual Steps Required in qRadar Console ​

  • Navigate to Admin > Data Sources > Log Sources
  • Create "APTL-Kali-RedTeam" log source
  • Set up custom properties for red team activity classification
  • Configure parsing rules for red team log extraction

Benefits of Red Team Log Separation ​

This red team log separation allows you to:

  • Filter logs by red team vs victim activity
  • Search for specific attack types and commands
  • Correlate red team actions with SIEM detections

Web Access ​

Once installation is complete:

  • Web UI: https://SIEM_IP
  • Login: admin/(password you set during installation)

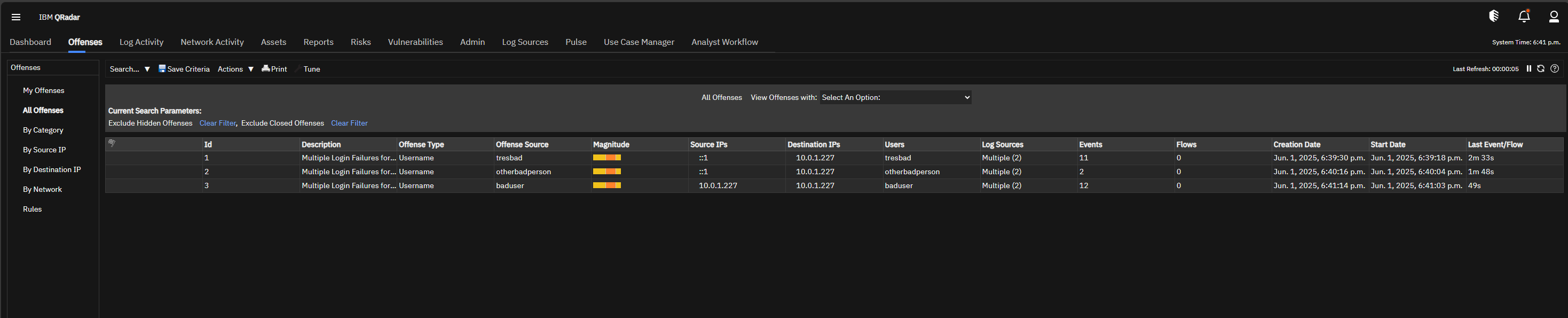

Offences in qRadar
